PRODUCT INFORMATION
Overview & application
1. Designed for Efficient Air Distribution and Oxygen Transfer
Disc diffusers release air into water through membrane perforations, generating bubbles that transfer oxygen into the water. Aeration performance depends on membrane design, operating airflow, water depth, air pressure and wastewater characteristics.

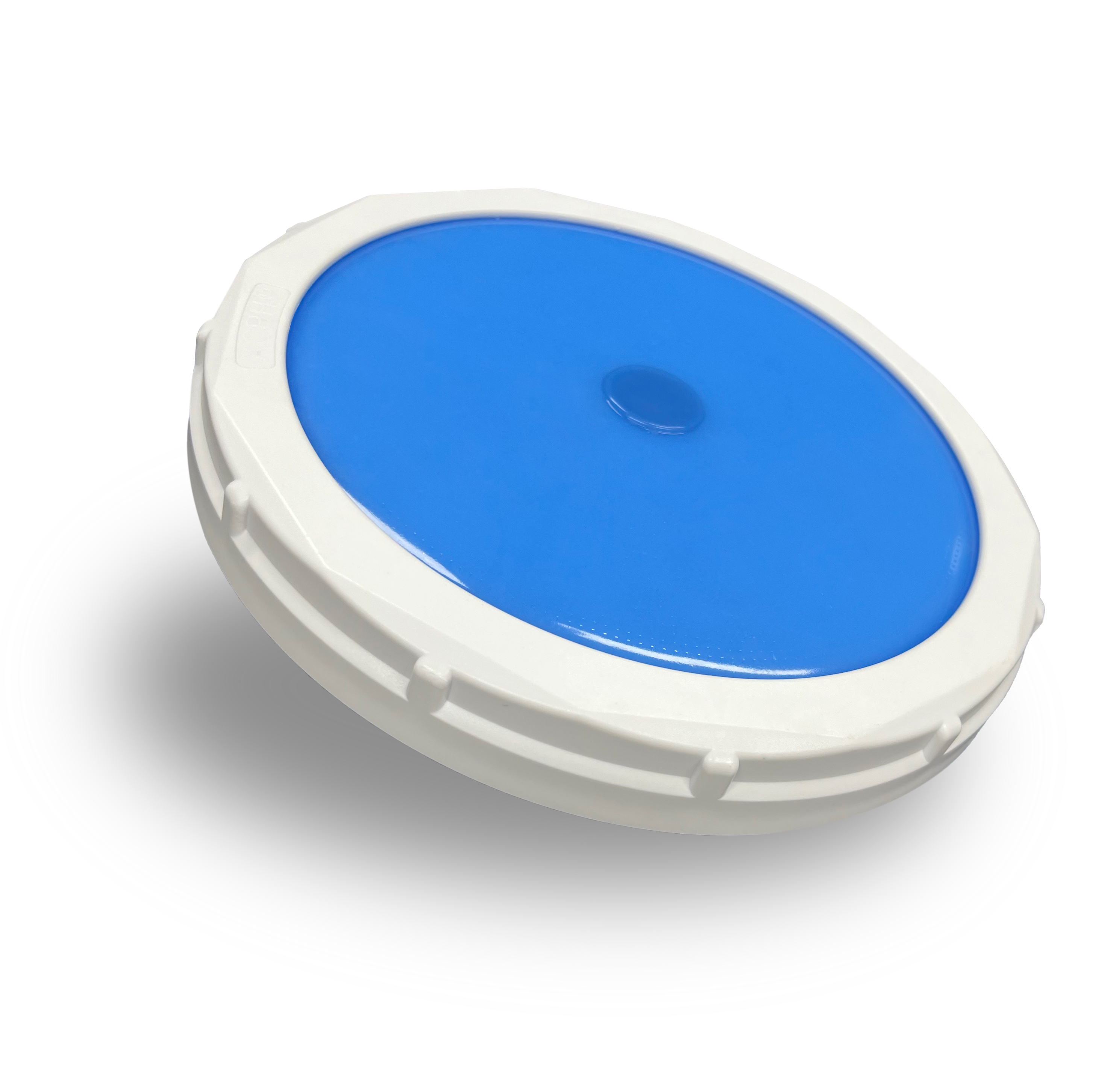

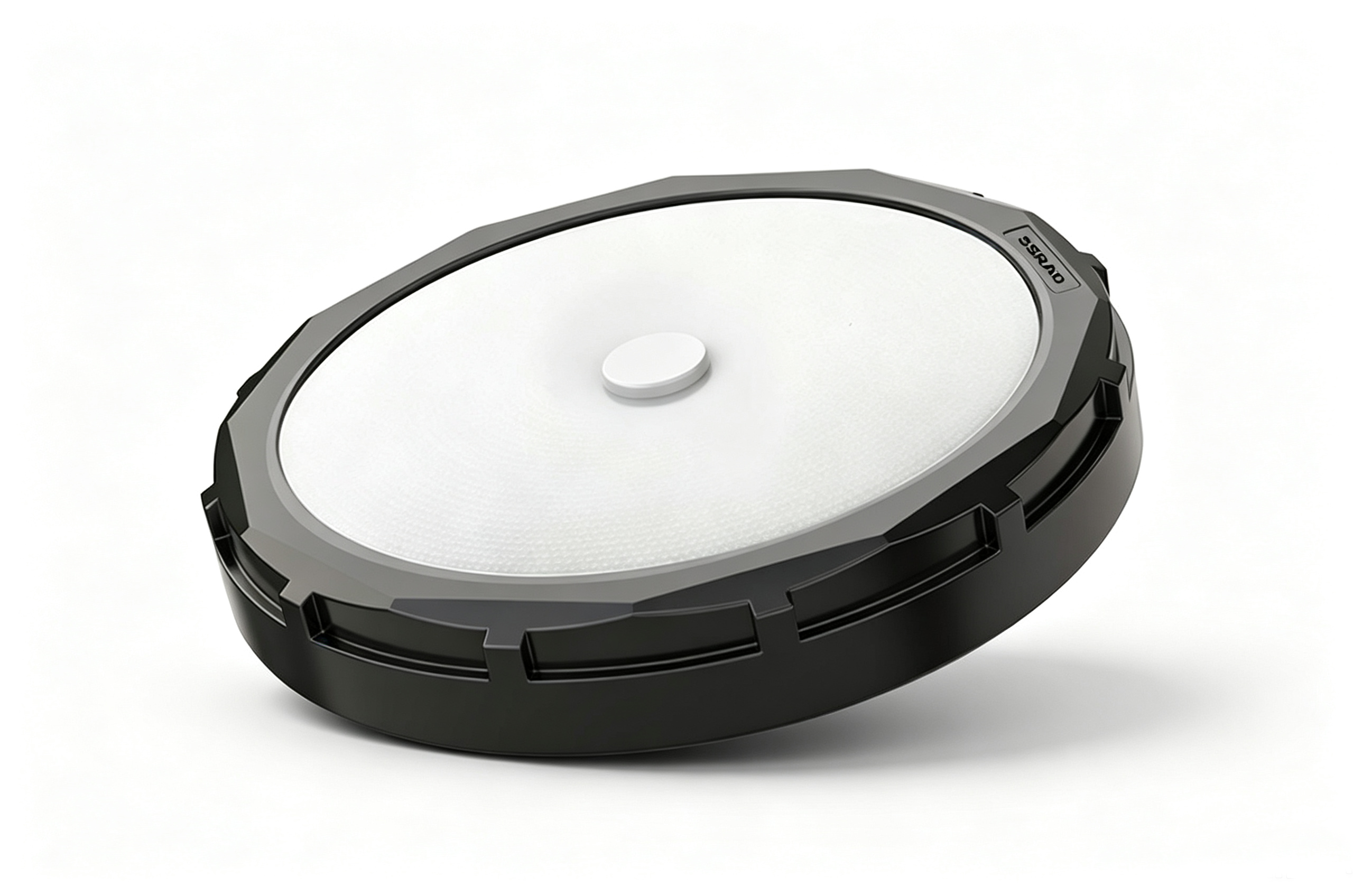

A typical disc diffuser consists of a diffuser body, membrane, air inlet connection and associated mounting components. The exact construction and materials depend on the selected model. Proper diffuser placement and air supply design help match the equipment to tank geometry and biological treatment requirements.
2. Engineered for Reliable Aeration Performance
Actual disc diffuser performance depends on product design, material selection, operating conditions and system configuration. ODMS considers aeration requirements, material compatibility, layout and maintenance needs to help identify a suitable configuration.
01｜Fine-Pore Aeration

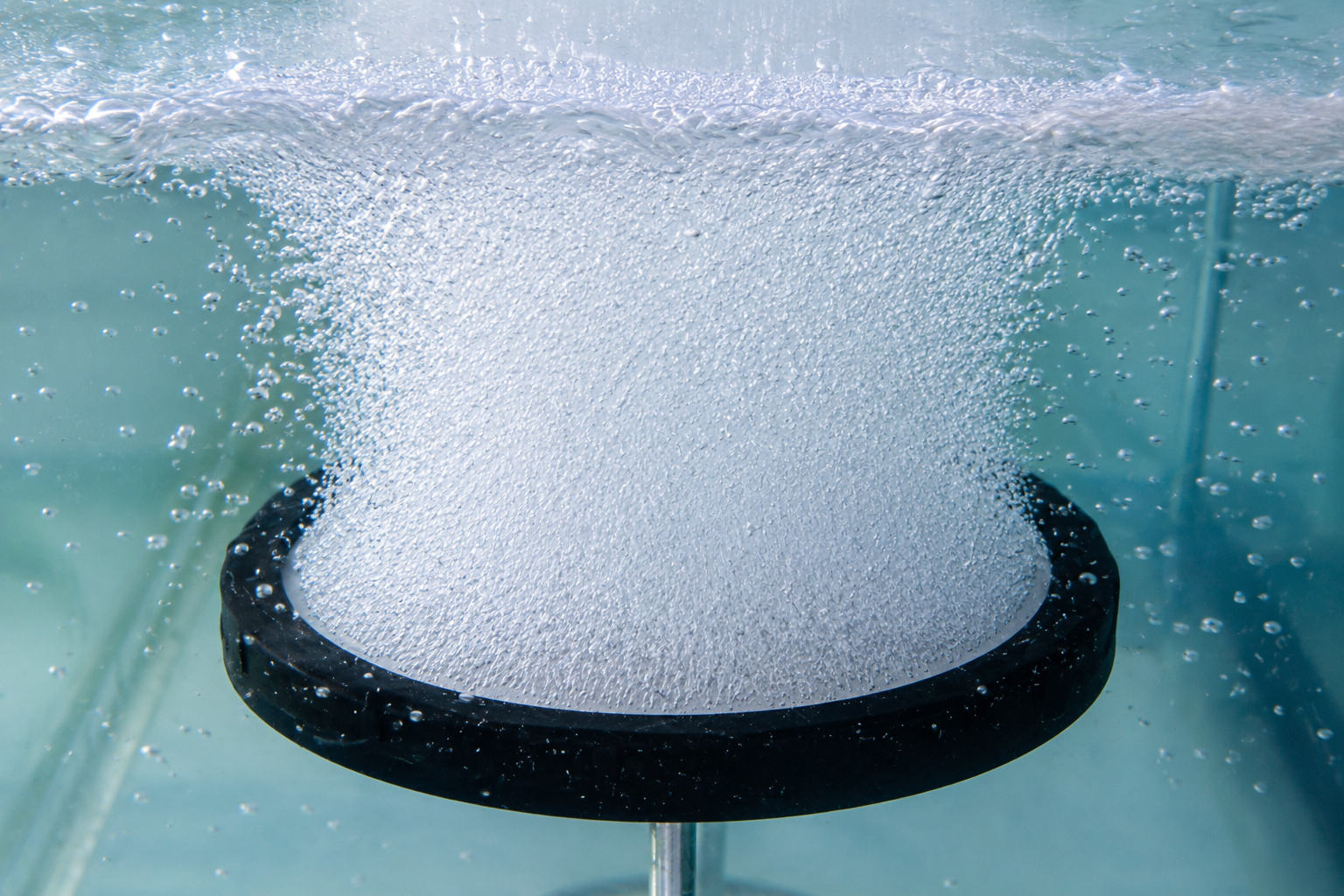

The perforated membrane distributes air into the water. Actual bubble size and distribution depend on membrane design, airflow and submerged operating conditions.
02｜Flexible Layout Design
Diffuser locations can be planned according to tank dimensions, oxygen demand and air supply conditions to support effective floor layout.
03｜Material Options
Membrane materials are evaluated according to wastewater characteristics, temperature and operating requirements.
04｜System Compatibility
Design airflow, operating pressure, piping resistance and blower operating range are considered together, rather than selecting diffusers based on standalone product data alone.
3. Technical Specifications & Model Selection
Disc diffuser selection should consider product dimensions, design airflow, operating pressure, oxygen transfer requirements and site installation conditions. Confirm the following parameters against the specific model and its official technical datasheet.
| Membrane Material | TPU | TPU |
| Model | Ф215 | Ф350 |
| Membrane Thickness(mm) | 0.7+0.1 | 1.7+0.1 |
| Effective Aeration Area(㎡) | 0.023 | 0.07 |
| Bubble Diameter(mm) | 0.8-1.5 | 0.8-1.5 |
| Standard Air Flow(m³/h) | 1.5-2.5 | 5-6 |
| Air Flow Range(m³/h) | 1-5 | 2.5-10 |
| Resistance Loss(pa) | 2000-4000 | 2000-4300 |
| Oxygen Transfer Efficiency (at 6m water depth) | 37.59% | ≥38% |
| Membrane Material | EPDM | Silicone | EPDM | Silicone | EPDM | Silicone |
| Model | Ф215 | Ф215 | Ф260 | Ф260 | Ф330 | Ф330 |
| Membrane Thickness(mm) | 2.0+0.1 | 2.0+0.1 | 2.0+0.1 | 2.0+0.1 | 2.0+0.1 | 2.0+0.1 |
| Effective Aeration Area(㎡) | 0.023 | 0.023 | 0.045 | 0.045 | 0.07 | 0.07 |
| Bubble Diameter(mm) | 0.8-1.5 | 1.0-1.8 | 0.8-1.5 | 1.0-1.8 | 0.8-1.5 | 1.0-1.8 |
| Standard Air Flow(m³/h) | 1.5-2.5 | 1.5-2.5 | 3-4 | 3-4 | 5-6 | 5-6 |
| Air Flow Range(m³/h) | 1-5 | 1-5 | 1.5-7 | 1.5-7 | 2.5-10 | 2.5-10 |
| Resistance Loss(pa) | 2000-4000 | 2000-4000 | 2000-4000 | 2000-4000 | 2000-4000 | 2000-4000 |
| Oxygen Transfer Efficiency (at 6m water depth) | ≥38% | ≥36.5% | ≥38% | ≥38% | ≥38% | ≥37.5% |
| Oxygenation Capacity(KgO₂/h) | ≥0.30 | ≥0.28 | ≥0.37 | ≥0.34 | ≥0.55 | ≥0.52 |
| Theoretical Power Efficiency(KgO₂/kw.h) | ≥9.4 | ≥9.4 | ≥8.2 | ≥8.2 | ≥8.0 | ≥8.0 |
| Service Area(M²) | 0.2-0.64 | 0.2-0.64 | 0.25-1.0 | 0.25-1.0 | 0.40-1.5 | 0.40-1.5 |
4. Installation Designed Around Your Tank and Air Supply System
Disc diffusers must be configured in coordination with tank geometry, floor laterals, air distribution piping and the air supply system. Proper layout helps meet design airflow requirements while allowing for inspection, maintenance and future replacement.
01｜Tank Layout
Plan diffuser locations and spacing according to tank dimensions, effective water depth and process oxygen demand.
02｜Air Distribution
Review design airflow, piping resistance and supply pressure to ensure the air distribution system meets project requirements.
03｜Connections & Supports
Confirm connection specifications, support structures and installation requirements for the selected diffuser model.
04｜Maintenance Access
Allow for inspection space, equipment removal and future maintenance during new-build and retrofit planning.
Project Compatibility
New installations can be configured around the process design. Retrofit projects require additional checks of existing piping, connection interfaces, tank-floor structures and site constraints.
CTA: Discuss Your Installation Requirements
5. Reliable Supply for Every Project
1. Cost Reduction: Direct factory supply cuts total projectprocurement costs by 20% - 35%.
2. 100% Fit Guarantee: Send us your sample or connectiondimensions;we supply a test unit within 3 days to verify 100%.
3. 100% Bubble Uniformity Testing: Every batch undergoesbubble distribution & head-loss testing before leaving the factory.
4. Tensile & Aging Test: Membrane lifespan exceeds 5-8years under continuous operation.
5. Certifications: ISO 9001, ISO 14001, ISO45001, 49+Patented Technologies.
6. Daily Capacity: 20,000+ pcs/day-ensures on-timedelivery for large WWTP projects.
7. Fast Lead Time: Standard orders shipped in 7 - 14 days. Emergency replacement stock available.
8. Custom Packaging: Export-grade heavy carton or woodenpallet packaging to avoid damage during ocean.
9. 2–8 Year Warranty, Contractually Specified: Warranty periods of 2–8 years are available, with the agreed warranty duration and terms specified in the contract.
6. Disc Diffusers for Municipal and Industrial Wastewater
Disc diffusers can be used in municipal and industrial wastewater applications that meet the product's material, performance and operating requirements. Organic loading, wastewater composition, temperature and process oxygen demand vary by application, so equipment selection should be based on actual conditions.
01｜Municipal Wastewater
Suitable for biological aeration tanks that meet the product's design requirements. Key considerations include tank layout, oxygen demand, air supply capacity and long-term operation.
02｜Chemical & Petrochemical Wastewater
Evaluate wastewater composition, temperature and compatibility with membrane and other wetted materials. Confirm suitability for the intended operating conditions.
03｜Textile & Dyeing Wastewater
Configure the system according to wastewater variability, treatment load, process oxygen demand and air supply conditions.
04｜Pulp & Paper Wastewater
Determine aeration requirements based on organic loading, biological treatment process, tank geometry and operating conditions.
05｜Food & Livestock Wastewater
Assess suitability according to wastewater composition, suspended solids, treatment load and maintenance requirements.
Not Sure Which Model Fits Your Project?
Share your available process data, tank drawings or equipment list. ODMS can help assess suitable product specifications and configuration requirements based on the information provided.
