1. Pulp & Paper Wastewater Demands Process-Specific Equipment
Fiber-Rich Wastewater · Variable Organic Loads · Continuous Treatment Requirements
Wastewater from pulp and paper production can contain fibers, fine suspended solids, dissolved organic compounds and process chemicals. Its composition varies with raw materials, pulping methods, paper grades and water reuse practices. ODMS supports equipment selection based on actual wastewater characteristics, treatment objectives and operating conditions.
01 | High Fiber & Suspended Solids Loading
Effective Separation Before Downstream Treatment
Fibers and fine suspended solids can increase treatment loads and contribute to equipment blockage. Screening and solid-liquid separation equipment must be selected according to particle characteristics and hydraulic conditions.
02 | Variable Organic Pollution Loads
Treatment Equipment Matched to Process Demand
COD and BOD levels vary significantly between production processes. Biological treatment equipment must be configured according to biodegradable organic loading and oxygen demand.
03 | Continuous Production & Operating Costs
Equipment Performance Across Changing Loads
Continuous production and changing wastewater flows require equipment with suitable operating ranges, reliable operation and manageable energy consumption.
04 | Sludge Handling & Disposal
Dewatering Matched to Fiber and Sludge Characteristics
Primary fiber sludge and biological sludge may have different dewatering properties. Equipment selection must consider sludge composition, feed solids and target cake dryness.
2. Treatment Process & Equipment Solutions
Equipment Selection Across Key Pulp & Paper Wastewater Treatment Stages
Pulp and paper wastewater treatment may combine fiber separation, equalization, physicochemical clarification, biological treatment and sludge dewatering. The process configuration depends on wastewater composition, treatment capacity, discharge requirements and water reuse objectives.

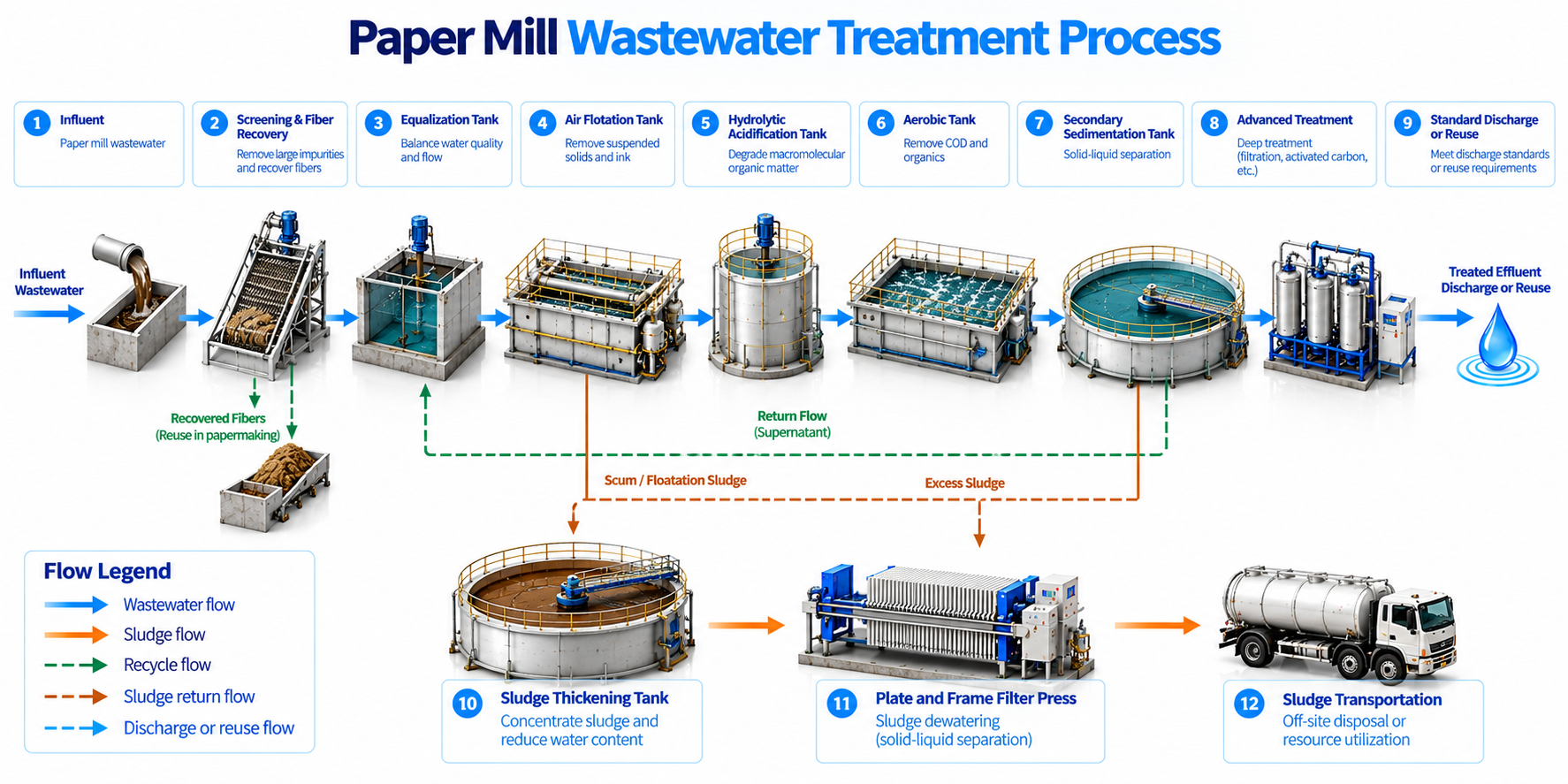

The process flow diagram illustrates the main treatment stages and equipment locations. ODMS supplies equipment for selected stages, with configurations matched to the process design and operating conditions.
01 | Wastewater Transfer & Fiber Screening
Equipment: Submersible Sewage Pumps · Rotary Drum Microscreen Filters
Pumps support wastewater transfer, while rotary drum microscreen filters provide fine screening and fiber separation where applicable. Selection considers flow rate, fiber characteristics, screen opening size and hydraulic conditions.
02 | Physicochemical Separation & Clarification
Equipment: DAF Systems · Chemical Dosing Systems · Sludge Scrapers
Dissolved air flotation and chemical dosing systems support fiber, suspended solids and applicable colloidal material separation. Sludge scrapers provide sludge collection in sedimentation tanks where required by the process.
03 | Biological Treatment & Aeration
Equipment: Magnetic Levitation Turbo Blowers · Disc Diffusers · Tube Diffusers · TPU Aeration Hoses · Submersible Mixers · Flow Propellers
ODMS supports aerobic treatment through coordinated air supply, oxygen transfer and hydraulic mixing. Blowers and diffusers are selected according to oxygen demand, tank geometry, operating depth, airflow and pressure requirements.
04 | Sludge Conditioning & Dewatering
Equpment: Multi-Disc Screw Presses · Decanter Centrifuges · Polymer Preparation & Dosing Systems
Sludge conditioning and dewatering equipment is selected according to fiber content, sludge characteristics, solids concentration, treatment capacity and target cake dryness.
CTA: Discuss Your Equipment Requirements
Pulp & Paper Wastewater Treatment Process
3. Engineered Around Your Pulp & Paper Wastewater Conditions
Process-Based Selection · Equipment Matching · Engineering Coordination
ODMS supports equipment selection based on wastewater characteristics, treatment requirements and operating conditions. We review equipment duty points, process interfaces and installation constraints to help engineering teams reduce selection mismatches and integration risks.
01 | Wastewater & Fiber Characteristics Review
Equipment Selection Based on Actual Water Quality
Review design flow, COD, BOD, TSS, fiber content, pH, temperature and load variations to determine screening, separation and treatment equipment requirements.
02 | Screening & Separation Equipment Matching
Configured for Fiber and Solids Loading
Evaluate screen opening size, hydraulic capacity, solids loading and DAF operating requirements to recommend suitable equipment configurations.
03 | Aeration System Engineering
Blowers and Diffusers Matched to Oxygen Demand
Coordinate blower airflow and discharge pressure with diffuser selection, oxygen demand, operating water depth and piping losses to support aerobic treatment performance.
04 | Sludge Dewatering & Installation Coordination
Matched to Sludge Properties and Site Conditions
Review sludge composition, dewatering capacity, equipment layout, piping interfaces and maintenance access to support equipment selection and project integration.
4. Reliability Is Engineered — Not Assumed.
Built Into Equipment Selection, Engineering Coordination and Delivery Verification
Pulp and paper wastewater projects require equipment that can handle variable solids loading, demanding operating conditions and continuous treatment requirements. ODMS focuses on reliable equipment configuration, precise engineering coordination and rigorous delivery verification to support project implementation.
01 | Reliable Equipment Configuration
Selected for Actual Process Conditions
Equipment models, materials and key components are evaluated against fiber characteristics, wastewater conditions, operating requirements and project specifications, with the supply scope clearly defined.
02 | Precision Engineering Coordination
Technical Interfaces Reviewed Before Delivery
Equipment dimensions, hydraulic connections, electrical requirements, control interfaces and maintenance access are reviewed to help reduce installation conflicts and integration risks.
03 | Rigorous Delivery Verification
Inspection and Testing Against Agreed Requirements
Applicable inspections, functional checks and equipment tests are conducted according to equipment type and agreed project requirements, with relevant documentation available for review.
5. Get Equipment Recommendations for Your Pulp & Paper Wastewater Project
Share Your Wastewater Data. Get Equipment Recommendations Matched to Your Process.
Whether you're developing a new wastewater treatment facility, expanding treatment capacity or upgrading existing equipment, ODMS can review your wastewater characteristics, treatment process and equipment requirements to recommend suitable configurations.
Share your design flow, COD, BOD, TSS, fiber characteristics, treatment objectives and project specifications. If you already have a process flow diagram or equipment list, send it to us for equipment selection and configuration review.
