PRODUCT INFORMATION
Overview & application

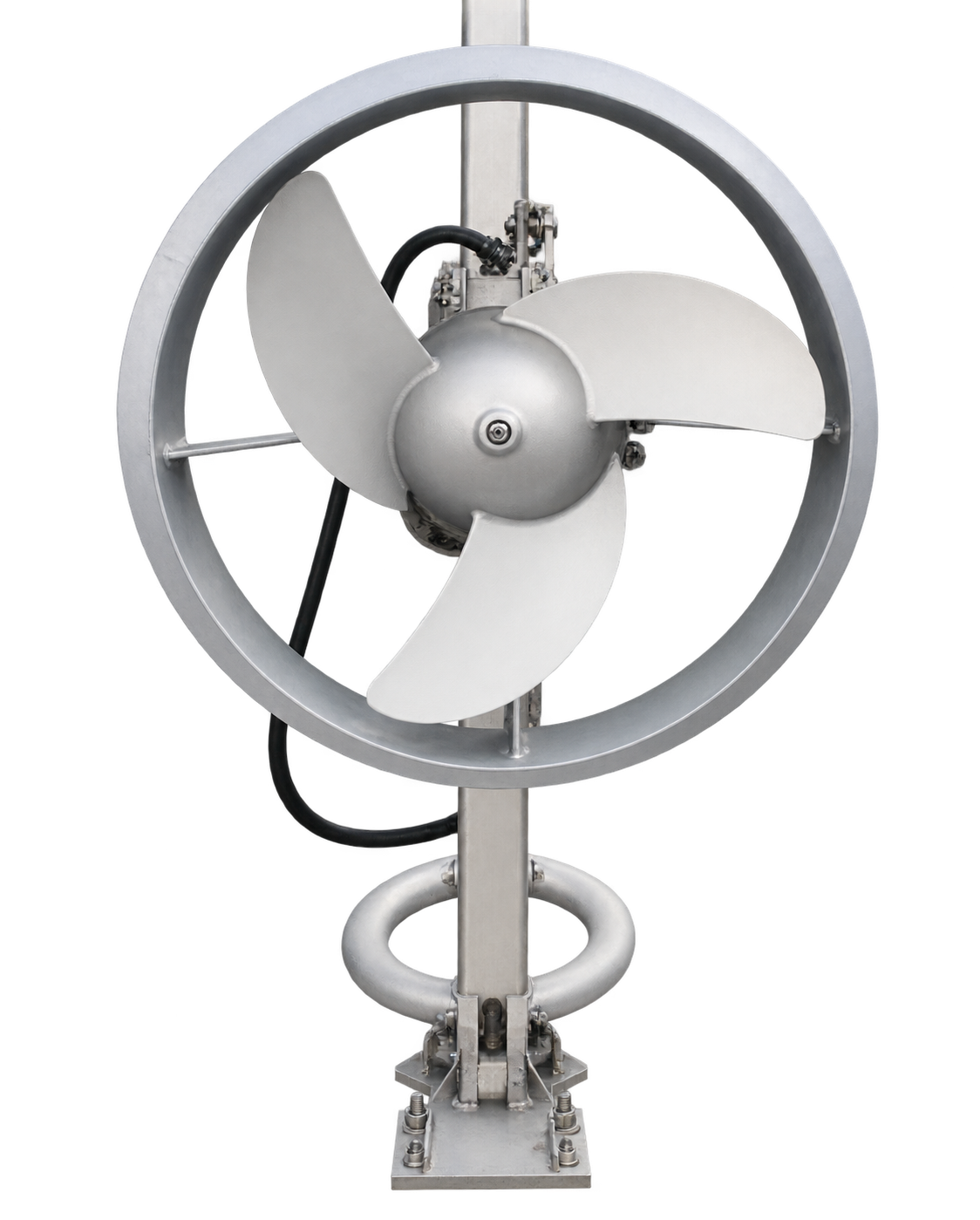

1. Product Introduction | Submersible Mixer
The ODMS Submersible Mixer is designed to create controlled liquid circulation and uniform mixing in wastewater treatment tanks. Installed directly in the liquid, its motor-driven impeller generates a directed flow that keeps suspended solids in motion, reduces sludge settling and promotes consistent mixing throughout the treatment zone.
It is commonly used in anoxic tanks, anaerobic tanks, activated sludge systems, equalization tanks and sludge holding tanks. In anoxic and anaerobic processes, the mixer helps maintain contact between wastewater and biomass without relying on mechanical aeration for mixing. In equalization and sludge tanks, it helps limit solids accumulation and supports a more uniform mixture.
With selection based on tank dimensions, liquid depth, solids concentration, required flow pattern and installation conditions, the ODMS Submersible Mixer helps engineers achieve effective tank mixing and reliable process circulation. The mixer is selected separately from the aeration system according to the actual process requirements.
2. Engineered for Effective Sludge Mixing
Uniform Mixing · Reduced Settling · Optimized Flow · Reliable Operation
The ODMS Sludge Mixer uses an engineered impeller and motor-driven mixing system to maintain sludge movement and improve solids distribution. Equipment configuration is matched to sludge characteristics, tank geometry and required mixing intensity.
01 | Consistent Sludge Mixing
Maintain Uniform Solids Distribution
Continuous impeller-driven flow helps distribute suspended solids throughout the tank, reducing concentration differences and supporting consistent sludge handling.
02 | Reduced Sludge Settling
Minimize Sediment Accumulation
The mixer generates circulation to help keep settleable solids in suspension and reduce sludge deposits in low-flow areas.
03 | Application-Based Hydraulic Design
Mixing Performance Matched to Tank Conditions
Impeller size, rotational speed and installation position are selected according to tank dimensions, sludge properties and required flow patterns.
04 | Reliable Continuous Operation
Designed for Demanding Treatment Environments
A robust motor and mechanical assembly supports continuous mixing, with equipment materials and protection features selected for the operating environment.

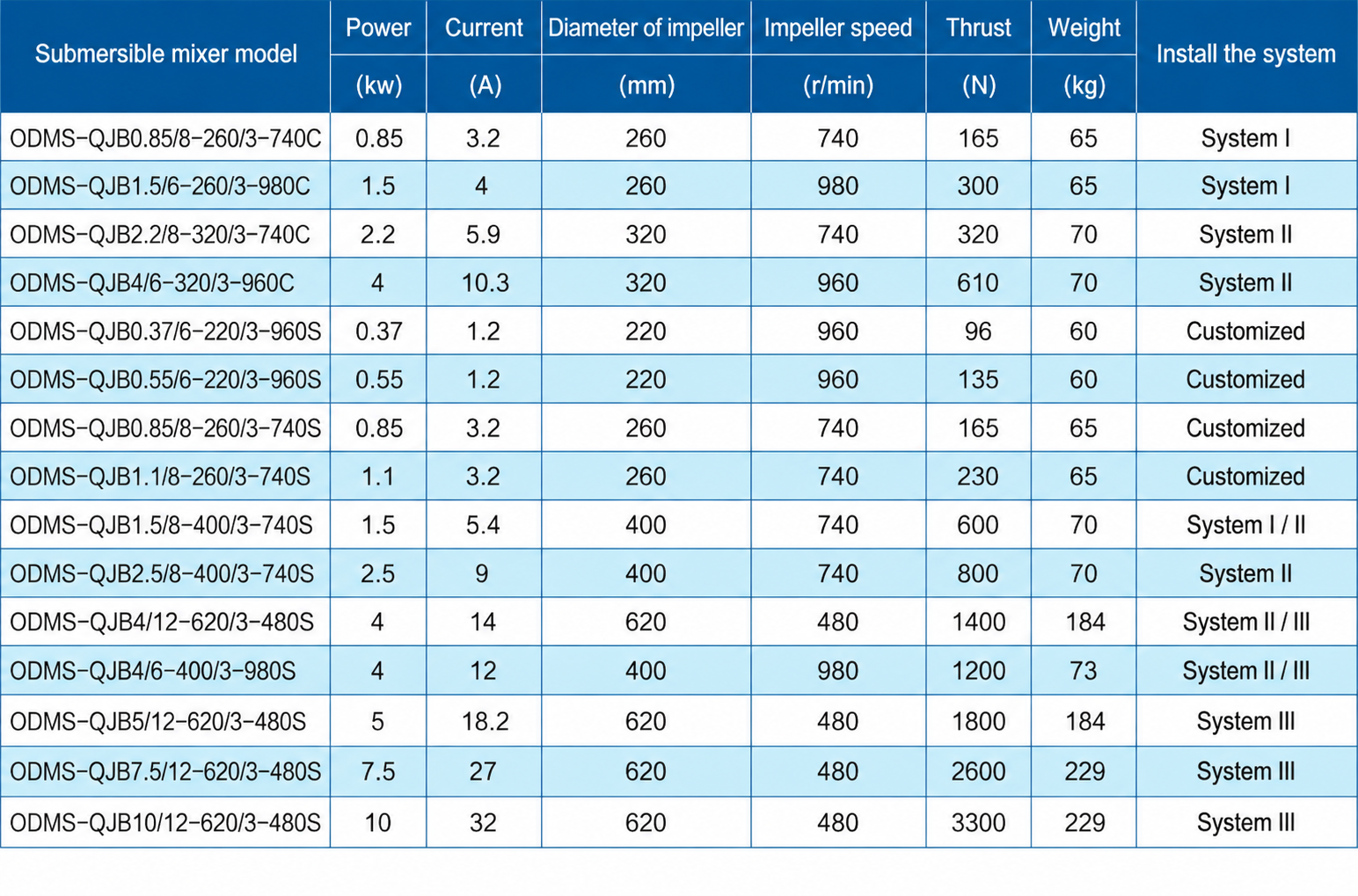

3. Submersible Mixer Technical Parameter
4. Application-Based Selection & Engineering Support
Tank-Specific Selection · Installation Coordination · Technical Support
ODMS provides sludge mixer configurations based on tank geometry, sludge properties and mixing requirements. We support equipment selection, installation planning and technical coordination to help EPC contractors and equipment buyers integrate mixers into new and existing treatment systems.
01 | Mixing Equipment Selection
Matched to Actual Sludge Conditions
Evaluate sludge concentration, viscosity, tank dimensions and mixing objectives to recommend a suitable mixer model and operating range.
02 | Installation & Positioning Support
Configured for Effective Tank Circulation
Review installation depth, mounting angle, equipment position and tank obstructions to support the required circulation pattern.
03 | Technical Documentation Support
Clear Data for Engineering Review
Provide applicable equipment specifications, dimensional drawings, mounting details and electrical information to support project design and procurement.
04 | Installation & Maintenance Planning
Practical Support for Project Operation
Coordinate mounting arrangements, lifting access and maintenance requirements to support equipment installation, inspection and servicing.
CTA: Get a Mixer Selection & Quote
5. Making Equipment Procurement More Reliable
From equipment selection and critical components to pre-shipment verification, ODMS focuses on the details that matter to long-term operation and reliable project delivery.
72H｜full-load reliability verification
Applicable equipment is verified under operating conditions before delivery.
100%｜Key Component Traceability
Key materials, critical components and electrical configurations are documented for traceability.
GLOBAL BRANDS ｜Proven Component Brands
Critical components from proven brands are selected according to equipment and project requirements.
FULL-PROCESS｜Full-Process Technical Support
Technical support throughout key project stages, from equipment selection and technical clarification to installation, commissioning and ongoing operation.
Selection → Technical Clarification → Delivery → Commissioning → Operational Support
